Neonatal Pulmonology
Session: Neonatal Pulmonology - Basic/Translational Science 1: Bronchopulmonary Dypslasia
Meng Meng Ge, PHD
pediatrician
Children's Hospital of Fudan University
Shanghai, Shanghai, China (People's Republic)
.png)

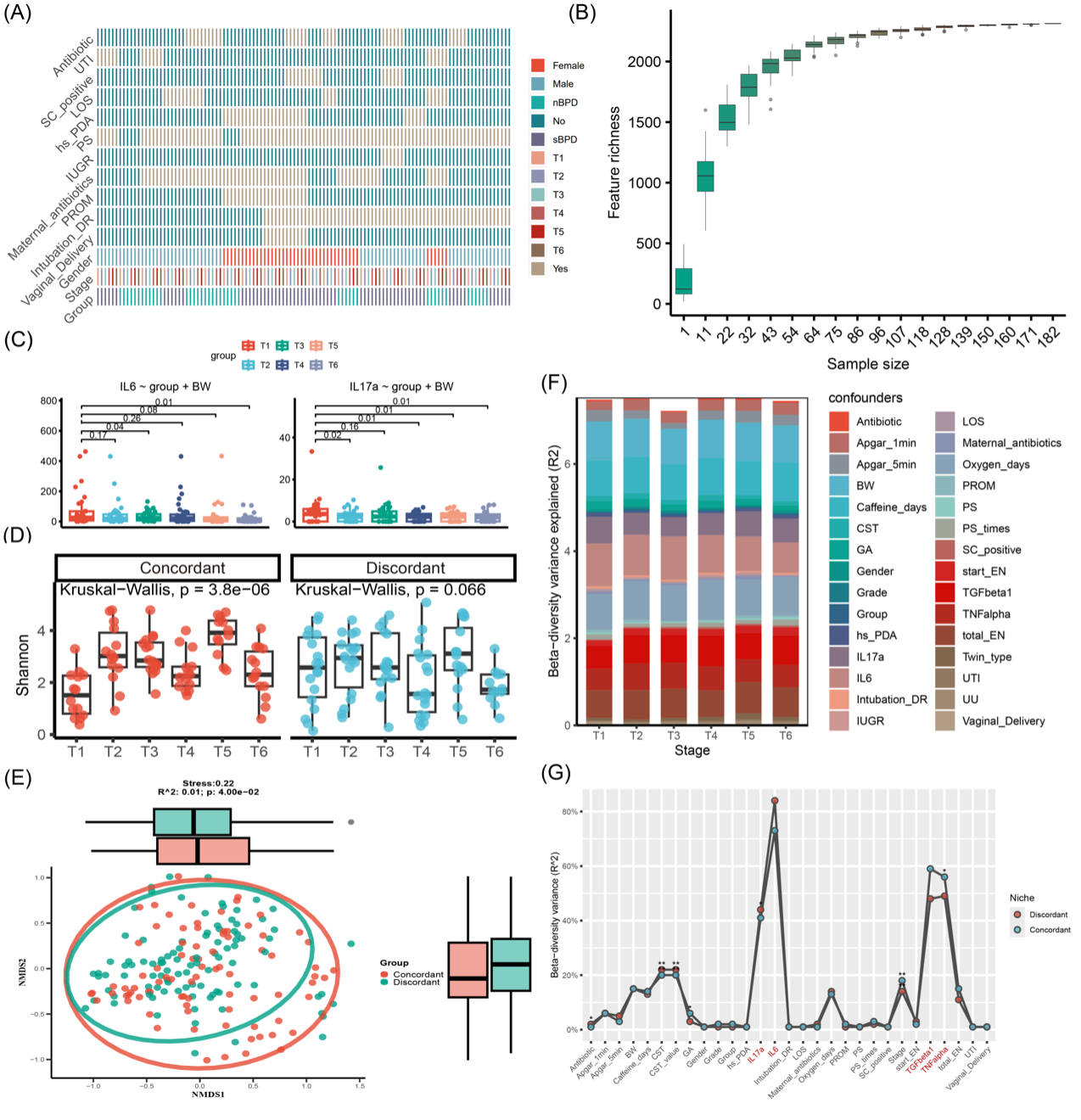

(A) Overview of clinical data for study participants in different BPD stages (T1-T6). (B) The saturation curve of the relationship between sample size and microbial community feature richness. (C) Expression levels of IL-6, IL-17a cytokines at different time stages after adjusting for the effects of group and birth weight. (D) Alpha diversity of airway microorganisms across stages in Concordant and Discordant twins. The vertical coordinate represents the Shannon index, with larger values indicating a higher response biodiversity. (E) NMDS analysis between the concordant and discordant groups. (F) The effect of clinical and environmental confounders (e.g., antibiotics, birth weight, sex, IL-6 levels) on differences in microbial community structure at different stages. (G) Beta-diversity variance (R²) of the airway microbiota across different clinical variables in very preterm twins with BPD. The y-axis represents the percentage of explained variance (R2) in beta-diversity, and the x-axis represents clinical variables. Asterisks (*) indicate clinical variables with significant differences in beta-diversity between the two groups (*p < 0.05, **p < 0.01).

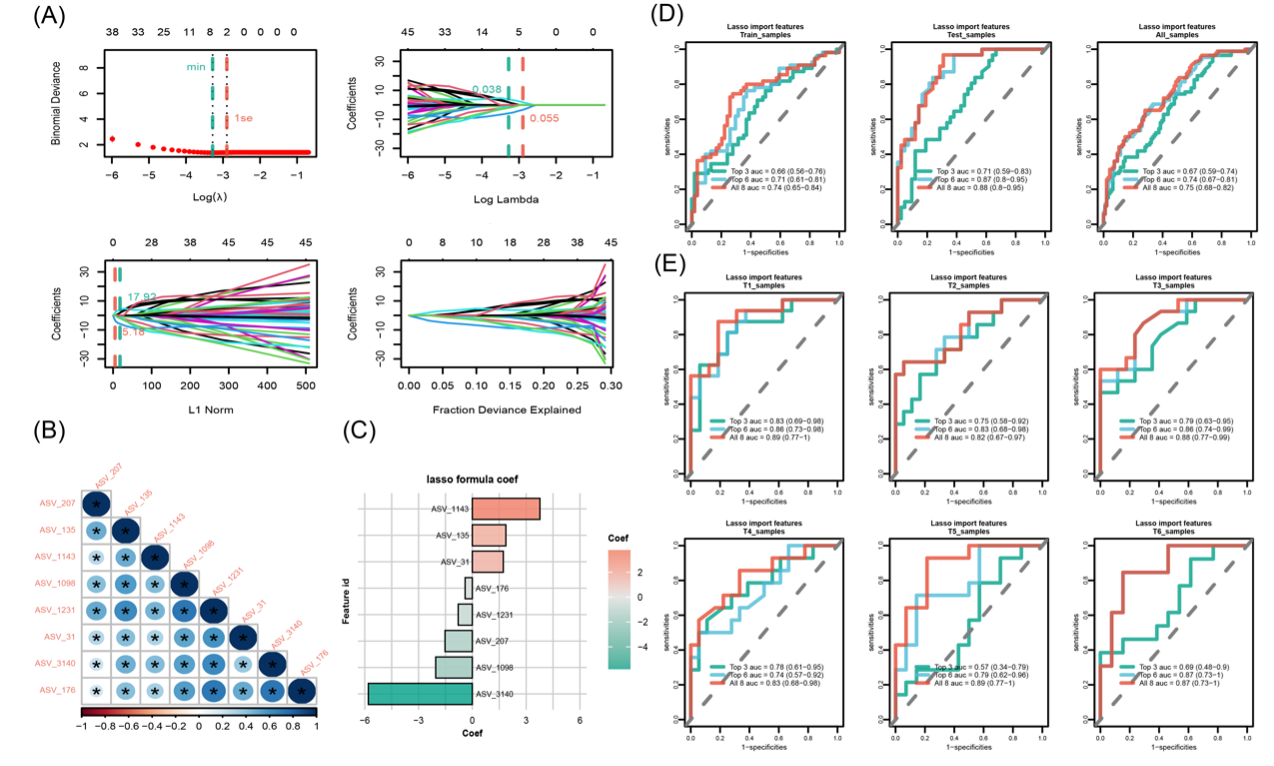

(A) Optimal parameter selection for the LASSO regression model. The top-left corner shows the cross-validation curve of binomial deviance for optimal 𝜆 selection, with green and red dashed lines marking 𝜆. min and 𝜆.1se, respectively. Eight ASVs were identified using the optimal 𝜆.min. The top-right figure displayed how regression coefficients of microbial variables change with 𝜆. The bottom-left figure showed regression coefficient trends under varying L1 Norms. The bottom-right figure revealed the relationship between deviance explained and regression coefficients: larger absolute coefficients mean greater deviance and better model fit. (B) A correlation plot of ASVs from the LASSO model, with circle size and color depth reflecting correlation strength, and asterisks denoting significance (p < 0.05). (C) The LASSO formula coef of ASVs, where red and green indicated positive and negative coefficients, respectively. (D) ROC curves for LASSO model evaluation. Three models were built using the top3, top6, and all ASVs based on regression coefficient magnitudes. Samples were split 6:4 into training and testing sets to compute AUC and 95% CI for ROC curves. (E) ROC curve assessments for samples at different stages.
